PU Sandwich Panel Line
In the modern construction and manufacturing industries, the demand for efficient, high-performance, and sustainable building materials has driven significant innovations in production technology. Among these, the PU (Polyurethane) Sandwich Panel Line stands out as a cornerstone of advanced manufacturing, enabling the mass production of composite panels that combine structural integrity with exceptional thermal insulation, soundproofing, and fire resistance.
Introduction to PU Sandwich Panel Line
Definition and Core Function
A PU Sandwich Panel Line is a integrated, automated production system designed for the continuous or batch manufacturing of PU sandwich panels. These panels consist of a polyurethane foam core bonded between two outer facer sheets, typically made of metal (such as color steel, stainless steel, or aluminum), though other materials may be used for specific applications. The core function of the production line is to streamline the entire manufacturing process—from raw material handling and forming to foam injection, curing, cutting, and final packaging—ensuring consistent quality, high production efficiency, and customizable output to meet diverse industry needs.
Unlike traditional construction material production, which often involves discrete, labor-intensive steps, PU Sandwich Panel Lines leverage automation and precision engineering to produce panels with uniform properties. This not only reduces production time and labor costs but also minimizes material waste, making the technology a cost-effective and sustainable solution for large-scale construction projects.
Evolution of PU Sandwich Panel Production Technology
The development of PU Sandwich Panel Lines traces back to the broader advancement of polyurethane technology in the mid-20th century. Polyurethane foam, first synthesized in the 1930s, gained widespread industrial adoption due to its exceptional insulation properties and versatility. Early production of PU sandwich panels was primarily manual or semi-automated, involving batch processing in molds. This discontinuous method was characterized by low production speeds, high labor requirements, and variations in product quality.
Over the decades, technological innovations have led to the emergence of continuous production lines, which revolutionized the industry. Continuous lines enable non-stop manufacturing, significantly increasing output rates and ensuring consistent panel quality through precise control of process parameters. Key advancements include the integration of computerized control systems, high-pressure foaming technology, and advanced roll forming mechanisms. Today’s modern PU Sandwich Panel Lines are highly sophisticated, combining mechanical, electrical, hydraulic, pneumatic, and chemical engineering principles to deliver efficient, reliable, and flexible production capabilities.
Significance in Modern Construction and Industry
PU sandwich panels have become indispensable in a wide range of applications, from industrial warehouses and cold storage facilities to commercial buildings, residential structures, and even specialized projects like livestock breeding farms and clean rooms. The growing demand for these panels is driven by their numerous advantages, including excellent thermal insulation, lightweight construction, high structural strength, durability, and ease of installation. As a result, PU Sandwich Panel Lines play a critical role in supporting the construction industry’s shift toward energy-efficient, fast-track building methods.
In addition to construction, PU sandwich panels are used in other sectors such as transportation (e.g., refrigerated trucks, shipbuilding) and industrial equipment enclosures. The ability of PU Sandwich Panel Lines to produce customized panels—with varying thicknesses, dimensions, and surface profiles—makes them adaptable to the unique requirements of these diverse applications. Furthermore, as global efforts to reduce carbon emissions intensify, the energy-efficient properties of PU sandwich panels have made their production lines increasingly important in promoting sustainable building practices.
Core Components of a PU Sandwich Panel Line
A typical PU Sandwich Panel Line consists of several interconnected subsystems, each performing a specific function in the production process. These components work in harmony to ensure the seamless transformation of raw materials into finished panels. Below is a detailed overview of the key subsystems and their individual components.
Uncoiling and Feeding System
The uncoiling and feeding system is the starting point of the production line, responsible for handling and feeding the metal coil facer sheets into the subsequent processes. This system must ensure smooth, consistent feeding to prevent material damage and maintain production stability.
Key components of this system include:

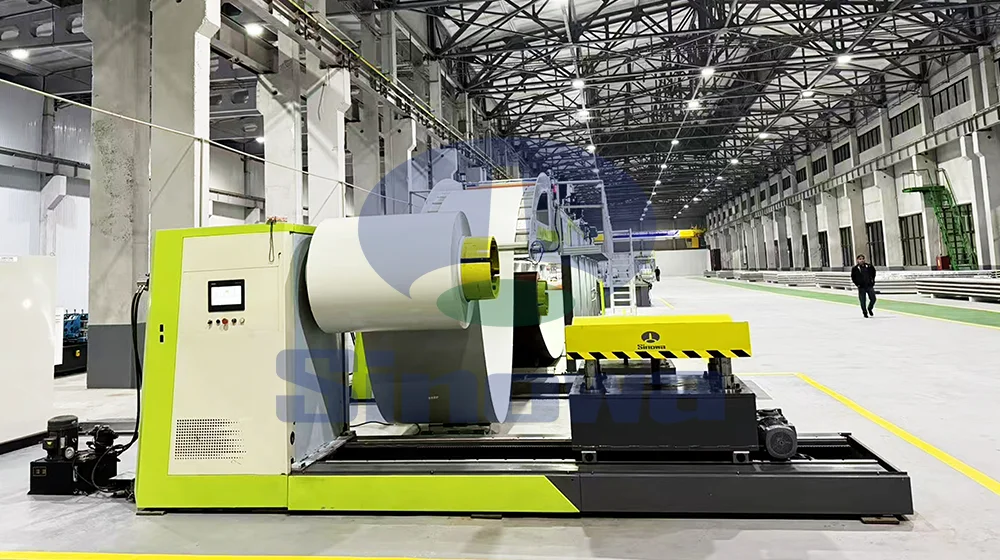

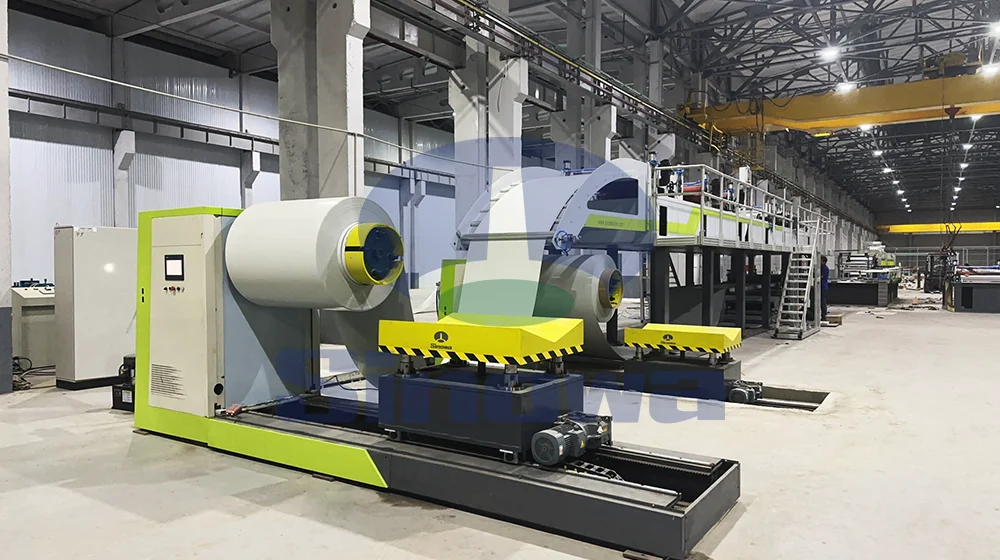

Uncoilers: These machines hold the metal coils and unwind them at a controlled speed. Uncoilers are typically equipped with hydraulic or mechanical expansion shafts to secure the coils, ensuring stable unwinding without slippage. Depending on the production line configuration, there may be separate uncoilers for the upper and lower facer sheets. Some advanced uncoilers feature automatic coil loading and centering mechanisms to reduce manual intervention and improve efficiency.
Levelers: After unwinding, the metal sheets often have residual stresses and surface irregularities from the coiling process. Levelers use a series of rollers to flatten the sheets, ensuring uniform thickness and surface flatness. This is critical for subsequent roll forming and foam bonding processes, as uneven sheets can lead to defective panels with poor structural integrity.
Feeding Guides and Pinch Rollers: Feeding guides ensure that the metal sheets are aligned correctly as they enter the roll forming system. Pinch rollers provide the necessary tension to pull the sheets through the line at a consistent speed, synchronizing the feeding process with other parts of the production line.
Protective Film Application Units: In many cases, a protective film is applied to the surface of the metal sheets before roll forming to prevent scratches and damage during production and transportation. These units automatically apply the film to one or both sides of the sheets, ensuring uniform coverage.
Roll Forming System
The roll forming system is responsible for shaping the flat metal sheets into the desired profile for the sandwich panel facers. The profile of the facers (e.g., corrugated, trapezoidal, or flat) depends on the application of the finished panel—for example, trapezoidal profiles are commonly used for roof panels, while flat or slightly ribbed profiles are used for wall panels.
Key components of the roll forming system include:

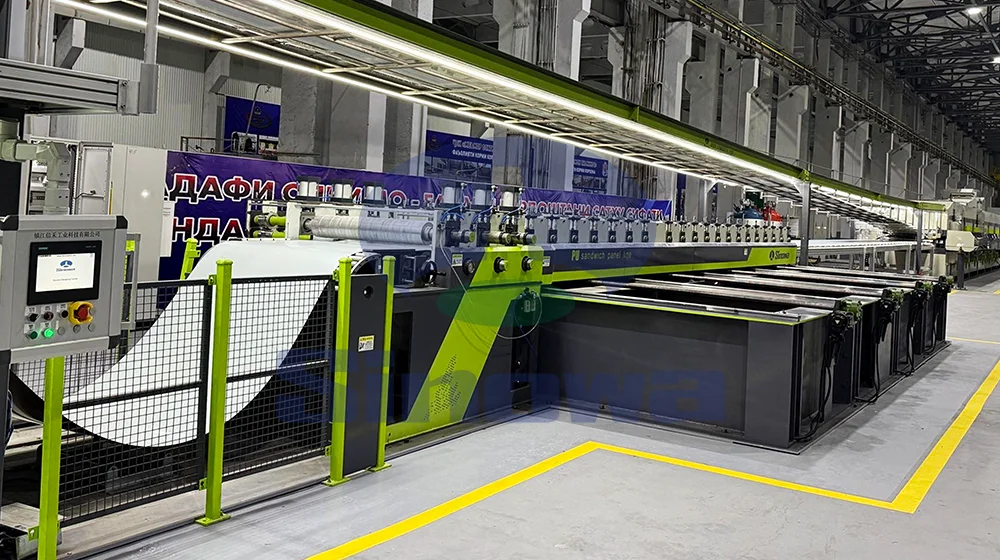

Roll Forming Stands: These are a series of tandem-mounted stands, each equipped with a pair of rollers (upper and lower). As the metal sheet passes through each stand, the rollers gradually bend the sheet into the desired profile. The number of stands depends on the complexity of the profile—more complex shapes require more stands to ensure gradual, uniform bending, which prevents material fatigue and cracking.
Double-Headed Roll Forming Machines: Many production lines use double-headed roll forming machines for the upper facer sheet. These machines feature two sets of forming rolls, allowing for quick switching between different profiles without extensive retooling. This enhances the production line’s flexibility, enabling the manufacture of multiple panel types on the same line.
Edging Roll Formers: These components shape the edges of the metal sheets into specific joint profiles (e.g., socket-type or lapped joints) that allow for easy installation of the finished panels. The joint design is critical for ensuring the structural integrity and weather resistance of the panel assembly.
Micro-Ribbing Stations: Some roll forming systems include micro-ribbing stations, which create small ribs on the metal sheets to enhance their rigidity without increasing thickness. This is particularly useful for lightweight panels that require additional structural support.
Pre-Heating System
The pre-heating system plays a vital role in ensuring proper bonding between the metal facers and the PU foam core. Polyurethane foam requires a specific temperature range for optimal foaming and curing. If the metal sheets are too cold, the foam may not bond effectively, leading to delamination. Conversely, excessive temperatures can cause premature curing, resulting in poor foam structure and reduced insulation performance.
Key components of the pre-heating system include:

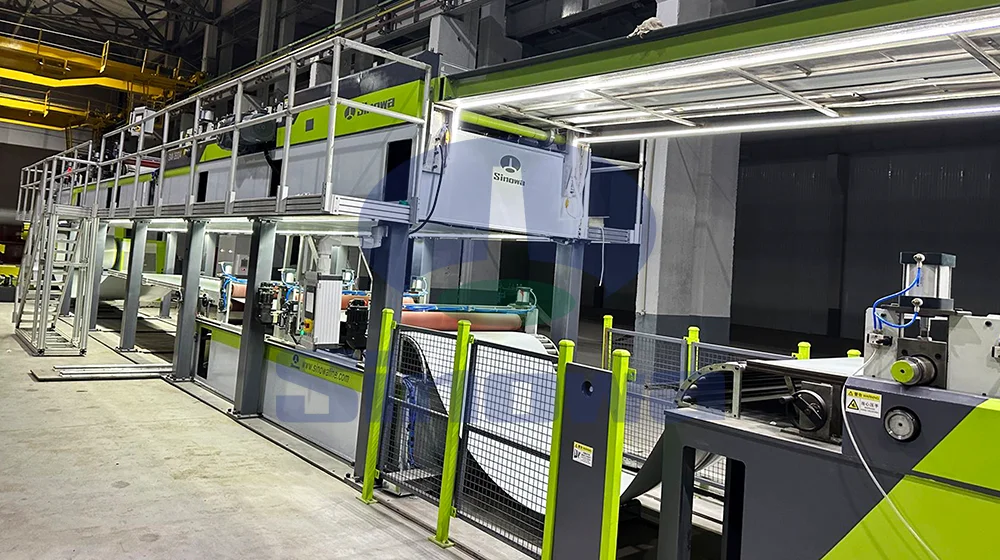

Hot Air Circulation Ovens: These ovens use forced hot air to uniformly heat the metal sheets to the desired temperature (typically between 40°C and 60°C). The ovens are designed with insulated chambers to minimize heat loss and ensure consistent temperature distribution across the width and length of the sheets. Temperature sensors and feedback control systems adjust the heating output to maintain the optimal temperature range.
Conveyor Systems: The heated metal sheets are transported through the oven on a conveyor system, which is synchronized with the overall production line speed. The conveyor may consist of rollers or belts, depending on the design of the production line.
PU Foaming and Injection System
The PU foaming and injection system is the core of the production line, responsible for mixing the polyurethane components and injecting the foam between the upper and lower metal facers. This system must ensure precise metering, thorough mixing, and uniform injection to produce a foam core with consistent density and properties.
Key components of this system include:
Raw Material Storage Tanks: These tanks store the two main components of polyurethane foam: polyol and isocyanate. The tanks are equipped with temperature control systems to maintain the raw materials at the optimal temperature for mixing and foaming. Additionally, they may include agitation systems to prevent sedimentation of the materials.
High-Pressure Foaming Machine: This machine is responsible for metering, mixing, and pressurizing the polyol and isocyanate. High-pressure foaming machines offer several advantages over low-pressure systems, including more thorough mixing, faster reaction times, and better foam quality. The machine uses precision pumps to deliver the correct ratio of polyol to isocyanate (typically 1:1 by volume, though this can vary depending on the desired foam properties).
Mixing Heads: The mixing heads are where the polyol and isocyanate are combined. These heads feature internal mixing chambers with rotating or static elements that ensure thorough blending of the two components. High-pressure mixing heads atomize the materials, creating a homogeneous mixture that reacts quickly to form foam. Some mixing heads are equipped with self-cleaning mechanisms to prevent material buildup and ensure consistent performance.
Foam Injection Bars: These bars distribute the mixed polyurethane components evenly between the upper and lower metal facers. The injection bars are positioned between the two facers and feature multiple nozzles to ensure uniform foam coverage across the width of the panels. The flow rate of the foam is adjusted according to the production line speed and the desired thickness of the foam core.
Side Sealing Devices: These devices seal the edges of the metal facers before foam injection, preventing the foam from escaping during expansion. Side sealing can be achieved using mechanical seals, tape, or foam strips, depending on the production line design.
Double Belt Press System

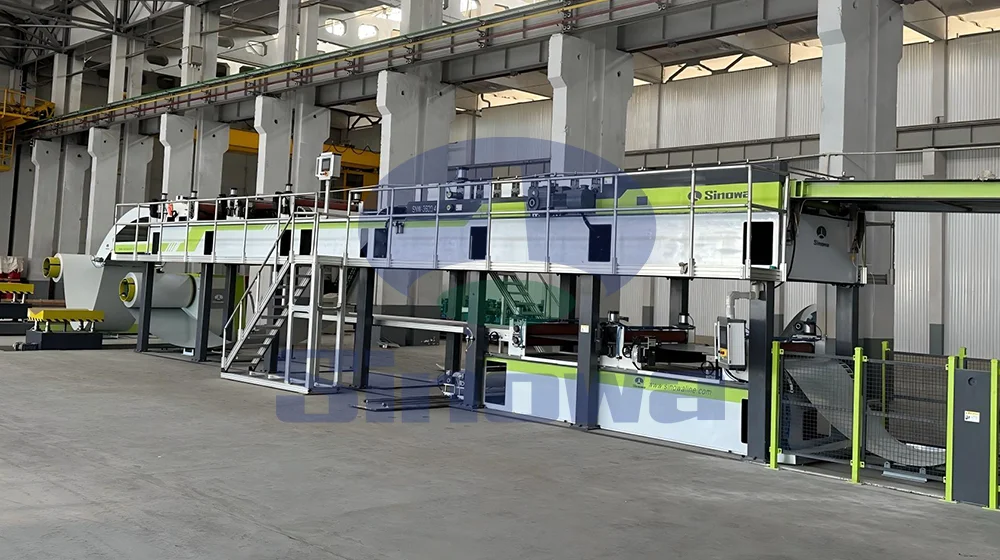

After foam injection, the sandwich panel enters the double belt press system, which applies uniform pressure and temperature to facilitate the foaming and curing process. The double belt press ensures that the foam expands evenly, bonds firmly to the metal facers, and forms a flat, uniform panel with the desired thickness.
Key components of this system include:
Upper and Lower Conveyor Belts: These belts are made of high-strength, heat-resistant materials (such as steel or fiberglass-reinforced rubber) that can withstand the high temperatures and pressures of the curing process. The belts are driven by precision motors to ensure synchronization with the production line speed.
Heating and Insulation Systems: The double belt press is equipped with heating elements (e.g., electric heaters or hot oil circulation systems) to maintain the optimal temperature for foam curing. The press is also insulated to minimize heat loss and ensure energy efficiency. The temperature and pressure within the press are carefully controlled to ensure the foam cures completely and develops the desired properties.
Pressure Adjustment Mechanisms: These mechanisms allow for precise adjustment of the pressure applied by the upper belt. The pressure is typically adjustable between 150 and 200 Bar, depending on the type of foam and the desired panel properties. Uniform pressure distribution is critical for preventing defects such as uneven thickness or voids in the foam core.
Cooling and Curing System
After exiting the double belt press, the sandwich panel is partially cured but still requires additional cooling and curing to achieve its full structural and thermal properties. The cooling and curing system accelerates the cooling process, ensuring that the foam core hardens completely and the panel retains its shape.
Key components of this system include:
Cooling Conveyors: These conveyors transport the panel through a cooling zone, where ambient air or forced cold air is used to lower the temperature of the panel. Some advanced systems use water-cooled rollers or belts to enhance cooling efficiency.
Curing Chambers: In some production lines, the panel may pass through a curing chamber after cooling. The curing chamber maintains a controlled environment (temperature and humidity) to ensure complete curing of the foam. This is particularly important for panels that require high structural strength or are used in demanding applications.
Cutting System
Once the panel is fully cured and cooled, it is cut to the desired length using the cutting system. The cutting process must be precise to ensure uniform panel lengths and clean edges, which are essential for easy installation.
Key components of this system include:

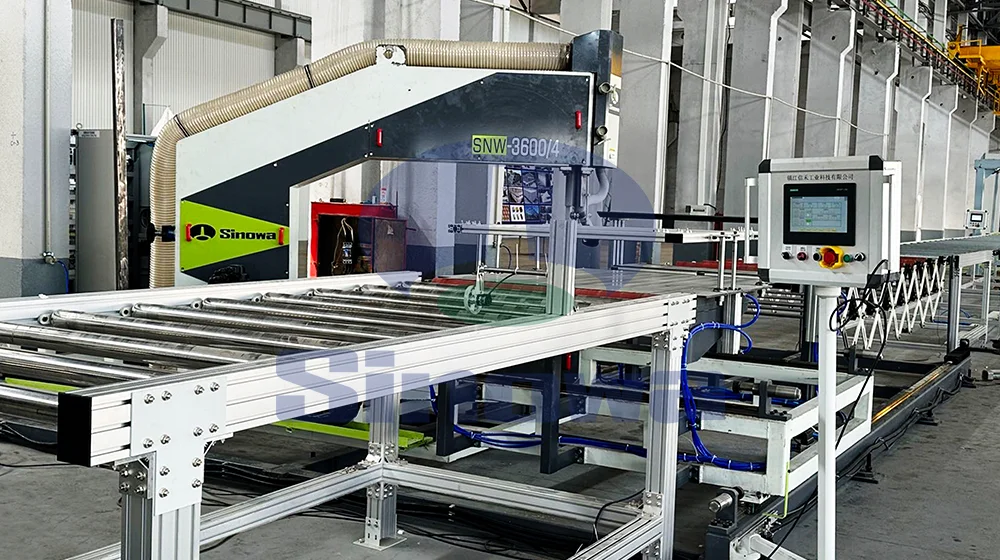

Flying Saw Cutting Machines: These machines are designed to cut the panel while it is still moving, ensuring that production is not interrupted. Flying saws are equipped with sensors that detect the position of the panel and adjust the saw’s speed to match the production line speed. This allows for precise cutting of panels to lengths ranging from 2 meters to 18 meters or more. Some flying saws feature 180° rotating mechanisms, enabling cutting in both directions and facilitating the production of short panels at high line speeds.
Band Saws or Disk Blades: The cutting tool may be a band saw or a disk blade, depending on the material of the facer sheets and the desired cut quality. Band saws are typically used for cutting thicker panels or panels with harder facer materials, while disk blades are suitable for thinner panels and offer faster cutting speeds.
Dust Collection Systems: Cutting metal and foam generates dust and debris, which can be harmful to workers and equipment. Dust collection systems remove these particles, ensuring a clean and safe working environment.
Stacking and Packaging System
The final stage of the production line is the stacking and packaging system, which handles the finished panels, stacks them neatly, and packages them for transportation and storage.
Key components of this system include:
Stacking Conveyors: These conveyors transport the cut panels to the stacking area. The conveyors may be equipped with sensors to detect the presence of panels and adjust the speed accordingly.
Automatic Stackers: These machines stack the panels in a neat, stable manner. Automatic stackers can be programmed to stack panels of different sizes and weights, reducing manual labor and minimizing the risk of panel damage. Some stackers feature vacuum suction cups or mechanical clamps to handle the panels gently.
Packaging Machines: The stacked panels are wrapped in protective materials (such as plastic film or kraft paper) to prevent scratches, moisture damage, and contamination during transportation. Packaging machines can automatically wrap the stacks, ensuring uniform coverage and secure sealing. Some systems also include labeling machines to apply product information labels to the packages.
Control System
The control system is the "brain" of the PU Sandwich Panel Line, overseeing and coordinating all the subsystems to ensure smooth, efficient operation. Modern production lines use advanced computerized control systems to monitor and adjust process parameters in real time, ensuring consistent product quality and minimizing downtime.
Key components of the control system include:
PLC (Programmable Logic Controller): The PLC is the core of the control system, executing pre-programmed logic to control the operation of the production line. It receives input from various sensors (temperature, pressure, speed, etc.) and sends output signals to actuators (motors, valves, cylinders, etc.) to adjust process parameters.
HMI (Human-Machine Interface): The HMI is a user-friendly interface (typically a touchscreen display) that allows operators to monitor the production process, adjust parameters, and troubleshoot issues. The HMI provides real-time data on production speed, output quantity, process temperatures, and other key metrics. It also alerts operators to any faults or abnormalities in the production line.
Sensor Network: A network of sensors is distributed throughout the production line to monitor various process parameters, such as the temperature of the metal sheets, the pressure in the foaming machine, the speed of the conveyors, and the position of the panels. These sensors provide continuous feedback to the PLC, enabling precise control of the production process.
Production Process of PU Sandwich Panels
The production process of PU sandwich panels is a highly coordinated sequence of steps, each dependent on the successful completion of the previous one. Below is a detailed breakdown of the typical continuous production process, from raw material preparation to finished product packaging.
Raw Material Preparation
The first step in the production process is the preparation of the raw materials. This involves inspecting and loading the metal coils and preparing the polyurethane components.
For the metal facers, the coils are inspected for surface defects, thickness uniformity, and dimensional accuracy. The coils are then loaded onto the uncoilers, and the ends of the coils are trimmed to ensure clean feeding into the levelers. The protective film (if used) is also prepared and loaded onto the film application units.
For the polyurethane foam, the polyol and isocyanate are stored in temperature-controlled tanks. The raw materials are checked for purity and viscosity, and any necessary additives (such as flame retardants, foaming agents, or catalysts) are added to the polyol tank. The foaming agent (commonly pentane or 141b, which are environmentally friendly alternatives to chlorofluorocarbons) is metered into the system to control the density of the foam.
Uncoiling and Leveling
The metal coils are unwound by the uncoilers at a speed synchronized with the rest of the production line. The unwound metal sheets pass through the levelers, which flatten the sheets to remove any residual stresses and surface irregularities. This step is critical for ensuring that the sheets can be accurately formed into the desired profile and that the foam bonds effectively to the surfaces.
After leveling, the metal sheets pass through the feeding guides and pinch rollers, which align and tension the sheets as they enter the roll forming system. The protective film is applied to the surfaces of the sheets at this stage, if required.
Roll Forming
The flat metal sheets enter the roll forming system, where they are gradually bent into the desired profile by a series of roll forming stands. The number of stands and the configuration of the rollers depend on the complexity of the profile. For example, a trapezoidal profile may require 8-12 roll forming stands to achieve the desired shape.
The edging roll formers shape the edges of the sheets into the required joint profile, ensuring that the finished panels can be easily connected during installation. Micro-ribbing stations (if present) add small ribs to the sheets to enhance their rigidity.
Pre-Heating
The formed metal sheets are transported to the pre-heating oven, where they are heated to the optimal temperature for foam bonding (typically 40°C-60°C). The hot air circulation system ensures uniform heating across the entire surface of the sheets. The temperature is carefully monitored and controlled to avoid overheating or underheating, which can affect the foam bonding process.
Foam Injection and Laminating
After pre-heating, the upper and lower metal facers are fed into the foam injection zone, where the side sealing devices seal the edges of the facers to form a cavity. The high-pressure foaming machine mixes the polyol and isocyanate in the correct ratio, and the mixed components are injected into the cavity through the injection bars.
The injected foam begins to expand immediately, filling the cavity between the two facers. The sandwich panel then enters the double belt press, where uniform pressure and temperature are applied to facilitate the foaming and curing process. The pressure ensures that the foam expands evenly and bonds firmly to the metal facers, while the temperature accelerates the curing reaction. The residence time in the double belt press typically ranges from a few minutes to several minutes, depending on the foam formulation and production line speed.
Cooling and Curing
After exiting the double belt press, the partially cured panel is transported to the cooling conveyor, where it is cooled by ambient air or forced cold air. The cooling process reduces the temperature of the panel, allowing the foam core to harden completely. For some applications, the panel may pass through a curing chamber to ensure full curing of the foam, which enhances the panel’s structural strength and thermal performance.
Cutting to Length
Once the panel is fully cooled and cured, it is transported to the cutting zone. The flying saw cutting machine detects the position of the panel and adjusts its speed to match the production line speed. The saw cuts the panel to the desired length, which is programmed into the control system. The cutting process generates dust and debris, which are removed by the dust collection system.
Stacking and Packaging
The cut panels are transported to the stacking area by the stacking conveyors. The automatic stacker picks up the panels and stacks them in a neat, stable manner. The stacked panels are then wrapped in protective material by the packaging machine to prevent damage during transportation and storage. Labels with product information (such as panel dimensions, thickness, and batch number) are applied to the packages, and the finished packages are ready for shipment.
Technical Parameters and Performance Characteristics
The performance of a PU Sandwich Panel Line is determined by a set of key technical parameters, which dictate the production capacity, product range, and quality of the finished panels. Understanding these parameters is essential for selecting the right production line for specific applications. Below is an overview of the main technical parameters and the performance characteristics of modern PU Sandwich Panel Lines.
Key Technical Parameters
Production Speed: Production speed is one of the most important parameters, typically measured in meters per minute (m/min). Continuous PU Sandwich Panel Lines can achieve speeds ranging from 3 m/min to 16 m/min, depending on the line configuration and the type of panel being produced. Higher speeds are possible for thinner panels with simpler profiles, while thicker panels or those with complex profiles may require slower speeds to ensure proper foam curing and bonding.
Raw Material Specifications:
Metal Facer Thickness: The production line can handle metal sheets with thicknesses ranging from 0.3 mm to 0.8 mm for steel sheets and 0.35 mm to 0.6 mm for stainless steel sheets.
Maximum Metal Sheet Width: The maximum width of the metal sheets typically ranges from 1250 mm to 1500 mm, though some lines can handle wider sheets for specific applications.
Coil Weight: The uncoilers can handle metal coils with weights ranging from 6 tons to 10 tons, depending on the design.
Foam Core Specifications:
Foam Thickness: The thickness of the foam core can be adjusted between 30 mm and 300 mm, with some lines capable of producing panels with foam thicknesses up to 300 mm for cold storage applications.
Foam Density: The density of the PU foam typically ranges from 30 kg/m³ to 50 kg/m³, depending on the desired insulation and structural properties.
Finished Panel Specifications:
Panel Length: The cutting system can produce panels with lengths ranging from 2000 mm to 18000 mm or more, with precise length control (tolerance typically ±2 mm).
Panel Width: The width of the finished panel is determined by the width of the metal sheets, typically ranging from 600 mm to 1200 mm.
Panel Thickness: The total thickness of the panel (metal facers + foam core) ranges from 30 mm to 320 mm.
Power Requirements: The total power consumption of a PU Sandwich Panel Line ranges from 200 kW to 300 kW, depending on the size and configuration of the line. The foaming machine and heating systems are the main power consumers.
Line Dimensions: The overall length of the production line ranges from 85 meters to 200 meters, with a width of 16 meters to 30 meters and a height of 6 meters. The exact dimensions depend on the number of subsystems and the production capacity.
Performance Characteristics
High Production Efficiency: Continuous PU Sandwich Panel Lines can produce thousands of square meters of panels per shift, making them ideal for large-scale construction projects. The automated nature of the line minimizes manual intervention, reducing production time and labor costs.
Consistent Product Quality: The precise control of process parameters (temperature, pressure, speed, etc.) ensures that the finished panels have uniform thickness, density, and bonding strength. This consistency is critical for ensuring the structural integrity and thermal performance of the panels.
Flexibility and Customization: Modern production lines offer a high degree of flexibility, allowing for the production of panels with different profiles, thicknesses, and dimensions. Quick changeover between different panel types is possible with double-headed roll forming machines and adjustable process parameters.
Energy Efficiency: Advanced heating and insulation systems minimize heat loss, reducing energy consumption. The use of environmentally friendly foaming agents (such as pentane) also contributes to the sustainability of the production process.
Superior Panel Performance: The panels produced by these lines offer excellent thermal insulation (thermal conductivity typically ≤0.024 W/(m·K)), soundproofing (sound transmission loss ≥40 dB), and fire resistance (depending on the foam formulation). The metal facers provide high structural strength and durability, making the panels suitable for a wide range of applications.
Operation and Maintenance of PU Sandwich Panel Line
Proper operation and regular maintenance are essential for ensuring the long-term performance, reliability, and safety of a PU Sandwich Panel Line. This section covers the key aspects of operation, maintenance, and troubleshooting.
Operational Guidelines
Operating a PU Sandwich Panel Line requires trained personnel who understand the principles of the production process and the functions of each subsystem. Below are some key operational guidelines:
Pre-Operation Inspection: Before starting the production line, operators should conduct a thorough inspection of all components, including the uncoilers, roll forming stands, foaming machine, double belt press, cutting machine, and control system. They should check for any signs of wear, damage, or loose connections. The raw materials (metal coils, polyol, isocyanate, additives) should also be inspected to ensure they meet the required specifications.
Startup Procedure: The startup procedure should be followed in a specific sequence to ensure safe and smooth operation. This typically involves turning on the control system, heating the raw material tanks and pre-heating oven to the required temperature, starting the conveyors at a slow speed, and gradually increasing the speed to the desired production rate. The foaming machine should be tested to ensure proper mixing and injection of the foam.
Process Monitoring: During production, operators should continuously monitor the process parameters (temperature, pressure, speed, foam density) using the HMI. Any deviations from the set parameters should be addressed immediately to prevent product defects. Operators should also inspect the finished panels regularly for quality issues such as delamination, uneven thickness, or surface defects.
Shutdown Procedure: When production is complete, the shutdown procedure should be followed to ensure the safety of the equipment and personnel. This involves stopping the foaming machine, reducing the speed of the conveyors, turning off the heating systems, and cleaning the mixing heads and injection bars to prevent material buildup. The raw material tanks should be sealed properly to prevent contamination.
Maintenance Practices
Regular maintenance is critical for extending the lifespan of the production line and minimizing downtime. Below are some key maintenance practices:
Daily Maintenance:
Clean the production line, including the conveyors, roll forming stands, and cutting machine, to remove dust, debris, and foam residue.
Lubricate the moving parts (rollers, bearings, chains, gears) with the recommended lubricant to prevent wear and tear.
Check the level of lubricants and hydraulic fluids and top them up if necessary.
Inspect the belts and chains for tension and wear, adjusting or replacing them as needed.
Weekly Maintenance:
Inspect the uncoilers and levelers for alignment and wear.
Check the heating elements and temperature sensors for proper operation.
Inspect the foam injection system for leaks and clean the injection nozzles.
Test the safety devices (emergency stops, safety guards) to ensure they are functioning properly.
Monthly Maintenance:
Inspect the roll forming rollers for wear and damage, replacing them if necessary.
Calibrate the pressure gauges and temperature sensors to ensure accurate readings.
Check the hydraulic and pneumatic systems for leaks and repair them as needed.
Inspect the cutting tool (band saw or disk blade) for sharpness and replace it if necessary.
Annual Maintenance:
Conduct a comprehensive inspection of all components, including the motors, reducers, and control system.
Overhaul the foaming machine, including cleaning the mixing heads and replacing worn seals and gaskets.
Inspect the double belt press for belt wear and replace the belts if necessary.
Perform a full system test to ensure all subsystems are working in harmony.
Spare Parts Inventory: Maintaining a sufficient inventory of critical spare parts (such as rollers, belts, seals, mixing heads, and sensors) is essential for minimizing downtime in case of equipment failure. The spare parts should be stored in a clean, dry environment to prevent damage.
Troubleshooting Common Issues
Despite regular maintenance, PU Sandwich Panel Lines may encounter issues that require troubleshooting. Below are some common problems and their possible solutions:
Uneven Panel Thickness:
Possible Causes: Uneven pressure in the double belt press, misalignment of the roll forming stands, uneven foam injection, or variations in metal sheet thickness.
Solutions: Adjust the pressure in the double belt press to ensure uniform distribution, realign the roll forming stands, check and clean the injection nozzles to ensure uniform foam flow, and inspect the metal sheets for thickness variations.
Delamination of Metal Facers and Foam Core:
Possible Causes: Insufficient pre-heating of the metal sheets, incorrect foam formulation, poor mixing of polyol and isocyanate, or contamination of the metal sheet surfaces.
Solutions: Increase the pre-heating temperature to the recommended range, check and adjust the foam formulation, inspect the mixing heads for proper operation, and ensure the metal sheet surfaces are clean and free of contamination.
Foam Voids or Bubbles:
Possible Causes: Moisture in the raw materials, insufficient mixing of polyol and isocyanate, low injection pressure, or improper foaming agent dosage.
Solutions: Check the raw materials for moisture and dry them if necessary, inspect the mixing heads for thorough mixing, increase the injection pressure, and adjust the foaming agent dosage.
Irregular Cutting Length:
Possible Causes: Malfunction of the flying saw sensor, incorrect speed synchronization between the saw and the production line, or wear of the cutting tool.
Solutions: Calibrate or replace the sensor, adjust the speed synchronization, and sharpen or replace the cutting tool.
Abnormal Noise from the Production Line:
Possible Causes: Lack of lubrication, loose connections, worn bearings or gears, or misalignment of components.
Solutions: Lubricate the moving parts, tighten loose connections, replace worn bearings or gears, and realign the components.
When troubleshooting, operators should refer to the production line’s manual for specific guidelines. For complex issues, it is recommended to consult professional maintenance personnel to avoid further damage to the equipment.
Applications of PU Sandwich Panels and Production Lines
PU sandwich panels produced by PU Sandwich Panel Lines are versatile building materials with a wide range of applications across various industries. Their unique combination of thermal insulation, structural strength, lightweight construction, and ease of installation makes them ideal for numerous projects. Below is an overview of the main application areas.
Construction Industry
The construction industry is the largest consumer of PU sandwich panels, using them for both residential and commercial buildings.
Industrial and Warehouse Buildings: PU sandwich panels are widely used for the walls and roofs of industrial warehouses, factories, and workshops. Their excellent thermal insulation properties help maintain a stable internal temperature, reducing energy costs for heating and cooling. The lightweight nature of the panels also reduces the load on the building’s foundation, making them suitable for large-span structures.
Commercial Buildings: Shopping malls, office buildings, hotels, and exhibition centers often use PU sandwich panels for their exterior walls and interior partitions. The panels can be customized with various surface finishes and colors, enhancing the aesthetic appeal of the buildings. Their soundproofing properties are also beneficial in commercial spaces where noise reduction is important.
Residential Buildings: In residential construction, PU sandwich panels are used for walls, roofs, and floors. They offer excellent thermal insulation, helping to reduce energy consumption for heating and cooling in homes. The panels are also lightweight and easy to install, making them suitable for prefabricated housing projects, which are becoming increasingly popular due to their speed of construction.
Cold Storage Facilities: Cold storage warehouses, refrigerated warehouses, and freezers require materials with exceptional thermal insulation properties. PU sandwich panels with thick foam cores (up to 300 mm) are ideal for these applications, as they can maintain low temperatures efficiently. The panels are also moisture-resistant, preventing condensation and ensuring the integrity of the stored goods.
Agricultural Industry
PU sandwich panels are used in the agricultural industry for the construction of livestock breeding farms, greenhouses, and storage facilities.
Livestock Breeding Farms: Barns for cattle, pigs, chickens, and other livestock use PU sandwich panels for walls and roofs. The panels provide thermal insulation to maintain a comfortable temperature for the animals, improving their health and productivity. They are also easy to clean and disinfect, ensuring a hygienic environment.
Greenhouses: PU sandwich panels are used for the walls and roofs of greenhouses, helping to maintain a stable internal temperature and humidity. This is critical for the growth of plants, especially in regions with extreme weather conditions. The panels also provide protection against wind, rain, and hail.
Transportation Industry
The transportation industry uses PU sandwich panels for the construction of refrigerated trucks, ship cabins, and train carriages.
Refrigerated Trucks: The walls and roofs of refrigerated trucks are made of PU sandwich panels, which provide excellent thermal insulation to keep the cargo cool during transportation. The lightweight nature of the panels also helps reduce fuel consumption.
Shipbuilding: PU sandwich panels are used for the internal partitions and bulkheads of ships. They offer thermal insulation and soundproofing, improving the comfort of the crew and passengers. The panels are also resistant to corrosion and moisture, making them suitable for marine environments.
Other Applications
PU sandwich panels are also used in other specialized applications, such as:
Clean Rooms: Pharmaceutical factories, electronic manufacturing facilities, and food processing plants require clean rooms with controlled temperature, humidity, and air quality. PU sandwich panels are used for the walls and ceilings of these clean rooms, as they are easy to clean, non-toxic, and have good airtightness.
Modular Buildings: Modular buildings (such as temporary offices, classrooms, and healthcare facilities) use PU sandwich panels for their walls, roofs, and floors. The panels are lightweight, easy to transport, and quick to assemble, making them ideal for temporary or emergency structures.
Emerging Trends and Future Developments
The PU Sandwich Panel Line technology is constantly evolving to meet the changing needs of the industry, including increasing demands for sustainability, energy efficiency, and digitalization. Below are some of the key emerging trends and future developments in this field.
Sustainability and Environmental Friendliness
As global efforts to reduce carbon emissions and promote sustainable development intensify, the PU sandwich panel industry is focusing on developing more environmentally friendly production processes and materials.
Eco-Friendly Foaming Agents: The industry is moving away from traditional foaming agents (such as CFCs and HCFCs) that have a high global warming potential. Instead, environmentally friendly foaming agents such as pentane and HFOs (hydrofluoroolefins) are being widely adopted. These agents have a low impact on the environment and comply with international environmental regulations.
Recyclable Materials: Research is being conducted to develop recyclable PU sandwich panels. Traditional PU foam is difficult to recycle, but new formulations are being developed that allow for the separation of the foam core from the metal facers, enabling recycling of both components. Additionally, the use of recycled metal for the facer sheets is becoming more common.
Energy-Efficient Production Processes: Manufacturers are investing in energy-efficient technologies to reduce the energy consumption of PU Sandwich Panel Lines. This includes the use of high-efficiency motors, advanced insulation materials for heating systems, and waste heat recovery systems.
Digitalization and Smart Manufacturing
Digitalization is transforming the manufacturing industry, and PU Sandwich Panel Lines are no exception. The integration of digital technologies is improving production efficiency, product quality, and operational visibility.
Industry 4.0 Integration: Modern PU Sandwich Panel Lines are being equipped with Industry 4.0 technologies, such as IoT (Internet of Things) sensors, cloud computing, and big data analytics. IoT sensors collect real-time data on process parameters, equipment performance, and product quality, which is transmitted to a cloud-based platform for analysis. This allows manufacturers to optimize production processes, predict equipment failures, and improve overall operational efficiency.
AI-Powered Quality Control: Artificial intelligence (AI) is being used for quality control purposes, such as detecting defects in the finished panels. AI algorithms analyze images of the panels captured by cameras, identifying defects such as delamination, foam voids, and surface scratches. This enables real-time quality inspection and reduces the need for manual inspection.
Digital Twin Technology: Digital twin technology creates a virtual replica of the production line, allowing manufacturers to simulate and optimize the production process. This helps in identifying potential issues before they occur, reducing downtime and improving product quality. Digital twins can also be used for training operators and testing new production parameters.
Advanced Materials and Product Innovation
Research and development efforts are focused on developing advanced materials and innovative products to expand the application range of PU sandwich panels.
High-Performance Foam Formulations: New foam formulations are being developed to enhance the fire resistance, thermal insulation, and mechanical properties of PU sandwich panels. For example, intumescent foam formulations that expand when exposed to fire, providing additional fire protection, are being researched. Additionally, foam with higher density and strength is being developed for structural applications.
Alternative Facer Materials: While metal is the most common facer material, alternative materials such as fiber-reinforced polymer (FRP), wood plastic composite (WPC), and recycled materials are being explored. These materials offer unique properties, such as corrosion resistance, lightweight construction, and sustainability, expanding the application range of PU sandwich panels.
Multifunctional Panels: Multifunctional PU sandwich panels with integrated features such as solar panels, sound absorption, and air purification are being developed. These panels offer added value and meet the growing demand for smart, sustainable buildings.
Increased Automation and Robotics
The trend toward increased automation is continuing, with more robots and automated systems being integrated into PU Sandwich Panel Lines.
Automated Material Handling: Robots are being used for tasks such as loading and unloading metal coils, stacking finished panels, and packaging. This reduces manual labor, improves efficiency, and minimizes the risk of workplace injuries.
Automated Tool Changeover: Advanced roll forming systems with automated tool changeover capabilities are being developed, allowing for quick switching between different panel profiles. This enhances the flexibility of the production line and reduces downtime.
Conclusion
PU Sandwich Panel Lines are sophisticated, integrated production systems that play a critical role in the manufacturing of high-performance PU sandwich panels. These lines have evolved significantly over the years, from manual batch processing to fully automated continuous production, enabling high efficiency, consistent quality, and customization. The core components of a PU Sandwich Panel Line, including the uncoiling and feeding system, roll forming system, foaming and injection system, double belt press, and control system, work in harmony to transform raw materials into finished panels with exceptional thermal insulation, structural strength, and durability.
Proper operation and maintenance are essential for ensuring the long-term performance and reliability of these production lines. By following operational guidelines and implementing regular maintenance practices, manufacturers can minimize downtime, reduce costs, and ensure the production of high-quality panels. The applications of PU sandwich panels are diverse, spanning the construction, agricultural, transportation, and other industries, and their demand is expected to grow as the focus on energy efficiency and sustainable building practices intensifies.
Looking to the future, PU Sandwich Panel Line technology will continue to evolve, driven by trends such as sustainability, digitalization, advanced materials, and increased automation. The integration of eco-friendly materials and processes, digital technologies such as IoT and AI, and advanced automation systems will further enhance the efficiency, sustainability, and versatility of these production lines. As a result, PU sandwich panels will remain a key building material in the global construction industry, contributing to the development of energy-efficient, sustainable, and smart buildings.
« PU Sandwich Panel Line » Update Date: 2026/1/16
URL: https://www.sinowamachine.com/tags/pu-sandwich-panel-line.html
