Phenolic Insulation Panel Production Line

Sinowa is a phenolic insulation panel production line supplier from china, customized high-quality & high efficiency phenolic insulation panel production line at low price, phenolic insulation panel production line has diversified and multifunctional production characteristics, which may produce products with different specifications such as PU, PF, PIR, etc. The surface material may be aluminum foil, colored steel, cement base cloth, kraft paper, non-woven fabrics, etc. The products are widely applied to such occasions as construction, decoration, pipeline ventilation, subway construction, etc.

The phenolic insulation panel production line is able to continuously and efficiently produce high-quality PU and Phenolic insulation boards.

We spare no efforts to improve our product quality and technological reliability by employing the most cutting-edge and the most reliable support and processes to make our products highly reliable and endurable. As a result, the phenolic insulation panel production line is highlighted by many perfect qualities. It is the core idea in Sinowa's product roadmap to surpass our competitors in terms of design philosophy, manufacture methods and service level, going for excellence and leading position and making constant improvement on our products and services, which is also our core value system to create efficiency and convenience for our customers.

Well-grounded on our solid strength as a renowned large-scale enterprise, Sinowa has a high starting point in developing industrial assembly lines. Based on the advanced science and technology introduced from within and without the country and supported by a great number of first-grade parts and components from the home and aboard, the phenolic insulation panel production line has a high-level configuration of supporting products in terms of machinery, electrical control, hydraulic pressure, automatic measurement and tracking, and so on. This is a strong proof of our product’s reliable quality and high efficiency.

The first-class appearance design and excellent energy saving measures make it unnecessary for customers to additionally construct the heat preservation and isolation room for production around the clock throughout the year, so that the customers may save lots of resources and costs.

Modularized standard design and important parts machined with CNC machine tool make the phenolic insulation panel production line have excellent quality assurance. Dependence on the man-made factors is eliminated. The operation is precision, with the highest operation speed of 30m/min. The phenolic insulation panel production line has the world-class production efficiency.

The high performance and reliable multicomponent cyclopentane foaming technology and equipment of Sinowa may be also applied to the foaming process of the phenolic aldehyde board. Therefore, our customers may not only freely adjust the foaming matching according to the raw material, but also save lots of costs. Moreover, they are of significance for environmental protection.

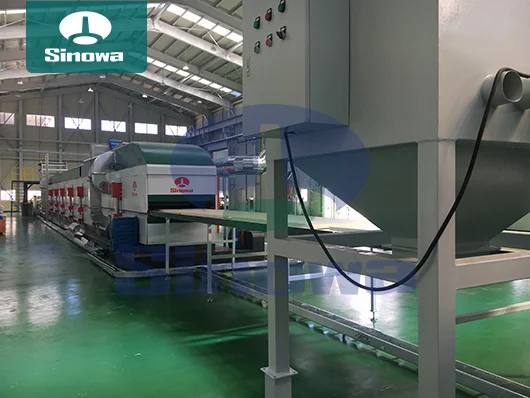

Sinowa's industrial production line of insulation panels is distinguished by its impressive performance of energy conservation. In each high point of energy consumption throughout the entire phenolic insulation panel production line are implemented corresponding measures to considerably lower the consumption level. For example, the body of the lamination belt conveyer is covered with insulation panels in very reasonable structures, which doesn’t blemish the overall outlook but greatly increases the insulation performance. The entire phenolic insulation panel production line is constantly optimized and improved so that the consumption of each power source is significantly reduced. The motor power of our lamination conveying system is only 3.0 kw, about 50% less than those of the same kind. All in all, the energy consumption of the whole industrial phenolic insulation panel production line equals 40% or even less of the equivalent lines in the market.

The phenolic insulation panel production line of Sinowa adopts the most advanced concepts in the world to realize the modularized design with all the parts bolted together rather than welded. In standardized production, the parts can be dismantled and exchanged, so the production cycle is drastically shortened and the maintenance becomes by far easier. Through finite element analysis, the equipment design is greatly optimized to realize modularization, digitization, and weight-minimalization.

The phenolic insulation panel production line is a sophisticated, fully automated industrial system designed for the continuous manufacturing of high-performance phenolic foam insulation panels, widely applied in building thermal insulation, ventilation duct systems, and industrial energy-saving projects. This integrated production system integrates raw material proportioning, mixing, foaming, composite pressing, curing, cutting and finishing processes into a seamless workflow, replacing traditional intermittent production modes with continuous, streamlined operation. It focuses on stabilizing the physical and chemical properties of phenolic materials during processing, ensuring the finished panels feature uniform pore structure, excellent thermal insulation, flame retardancy and structural durability. With intelligent parameter adjustment and precise mechanical control, the production line effectively reduces manual intervention, improves production consistency, and eliminates common product defects such as uneven density, surface warping and incomplete curing. As a core equipment for producing environmentally friendly insulation materials, it adapts to diverse production demands for single-sided and double-sided composite panels, laying a solid foundation for large-scale, high-quality production of phenolic insulation products.

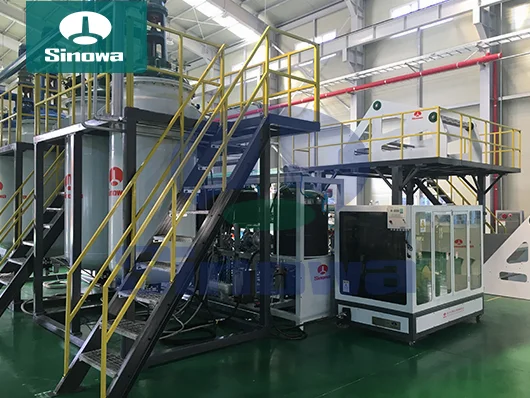

The core operational logic of the phenolic insulation panel production line starts with precise raw material pretreatment and automatic proportioning, which serves as the fundamental guarantee for stable product quality. The production system is equipped with a closed raw material storage and conveying unit that independently stores core materials including phenolic resin, curing agents, foaming agents and functional fillers, avoiding raw material contamination and performance attenuation caused by open placement. The intelligent metering system adopts high-precision sensing and quantitative feeding technology to dynamically adjust the proportion of each raw material according to the preset production process parameters. Different from manual proportioning with large errors, the automated system maintains consistent material ratios in every production cycle, effectively stabilizing the chemical reaction basis of subsequent foaming and curing processes. After proportioning, the raw materials are transported to a high-speed stirring and premixing device, where multi-directional circulating mixing eliminates material stratification and particle agglomeration. The uniformly mixed composite colloid presents stable fluidity and reaction activity, creating uniform reaction conditions for the integral foaming of phenolic foam, and fundamentally avoiding quality differences caused by uneven raw material mixing in traditional production processes.

Continuous foaming and in-situ molding is the most critical process stage that determines the internal structure and thermal insulation performance of phenolic insulation panels. After full premixing, the colloidal raw materials are continuously and quantitatively injected into the closed molding cavity through precision feeding pipelines. The production line adopts gradient temperature control technology in the foaming area to create a stable reaction environment for foaming agents and phenolic resin. In the initial low-temperature stage, the system stabilizes the preliminary expansion speed of the foam, preventing excessive instantaneous foaming that leads to pore rupture and internal hollowing. As the temperature rises steadily, the foaming agent undergoes uniform gasification reaction to generate fine and closed bubble structures inside the material, while the phenolic resin begins preliminary cross-linking reaction to fix the initial foam shape. The continuous feeding mode enables the foam substrate to form an integrated long plate structure without intermediate joints, which effectively solves the heat leakage and structural cracking problems easily caused by splicing segmented panels. The whole foaming process is dynamically monitored by real-time sensing equipment, which automatically adjusts feeding speed and temperature parameters to ensure consistent foam density and pore uniformity across the entire plate body.

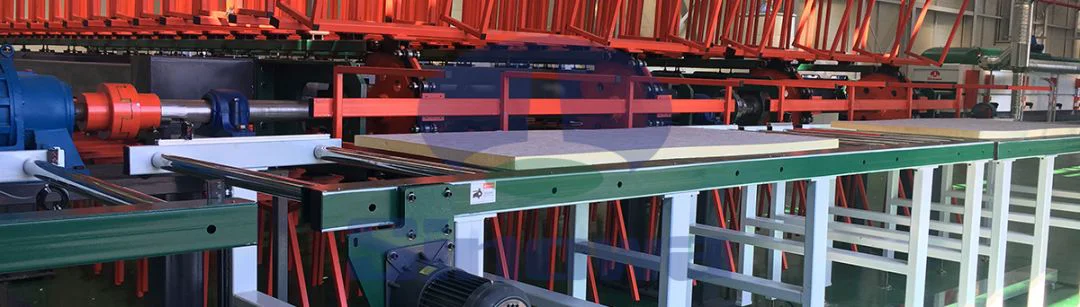

Surface composite pressing and lamination processing endows phenolic insulation panels with enhanced mechanical strength and surface flatness, expanding their practical application scenarios. Most engineering-grade phenolic insulation panels require single-sided or double-sided composite protective layers, and the automated composite unit of the production line can adapt to different surface materials including aluminum foil, color steel plates and fireproof fabric. Before composite lamination, the surface material unwinding and leveling device automatically unfolds and flattens the base material, and the deviation correction system precisely calibrates the feeding position to avoid offset and wrinkling during lamination. The micro-pressure gluing unit evenly coats the high-temperature resistant adhesive on the bonding surface of the surface material, with controllable glue amount and uniform coating, ensuring firm bonding without glue overflow or local empty bonding. Subsequently, the foam substrate and surface materials enter the multi-group roller pressing system for integrated composite molding. The graded pressing mode from light pressure to heavy pressure ensures that the foam structure is not damaged while realizing tight fitting between layers. This process greatly improves the overall compression resistance, scratch resistance and weather resistance of the panel, making it suitable for complex installation and long-term outdoor use.

Multi-stage gradient curing and constant-temperature shaping is essential to finalize the structural stability and comprehensive performance of semi-finished phenolic panels. After composite pressing, the preliminary molded panels are continuously sent to the segmented curing tunnel, which is divided into preheating, high-temperature curing and heat preservation shaping areas to complete the thorough thermosetting reaction of phenolic resin. The preheating stage slowly raises the internal temperature of the panel to eliminate residual moisture and internal stress generated in the foaming and pressing process, preventing subsequent panel warping and deformation. The high-temperature curing stage accelerates the cross-linking and polymerization reaction of phenolic molecular chains, solidifying the fine closed-cell foam structure and greatly improving the flame retardancy and dimensional stability of the material. The final heat preservation stage stabilizes the molecular structure through slow temperature reduction, avoiding performance attenuation caused by rapid cooling. The whole curing process adopts circulating air temperature control to ensure uniform temperature in each area of the tunnel, realizing consistent curing effect on the upper, lower and inner parts of the panel, and effectively reducing defective rates caused by incomplete curing or excessive high-temperature aging.

Intelligent conveying and fixed-length cutting processes realize standardized sizing and continuous production of finished panels, improving production efficiency and product uniformity. The production line is equipped with a seamless synchronous conveying system, where the conveying speed is precisely matched with the curing reaction rate of phenolic materials to ensure that each process link is coordinated and efficient without material accumulation or premature discharging. After complete curing and cooling shaping, the continuous long plate enters the automatic cutting unit. The high-precision tracking cutting system sets fixed-length parameters according to customer demand, and the servo-driven cutting tool realizes stable and fast cutting with smooth and neat cutting sections without burrs, cracks or plate deformation. Meanwhile, the edge trimming and finishing device automatically polishes the panel edges to eliminate irregular margins generated during cutting, ensuring consistent overall dimensions of each finished panel. The integrated conveying and cutting system realizes non-stop continuous production, breaking the efficiency bottleneck of traditional intermittent cutting, and greatly improving the yield and dimensional accuracy of phenolic insulation panels.

Post-processing and automatic stacking systems optimize product finish and packaging efficiency, realizing standardized factory output of phenolic insulation panels. After cutting and edge trimming, the panels enter the surface finishing unit for dust removal and defect inspection. The automatic dust removal equipment thoroughly cleans residual foam debris and dust on the panel surface and cutting sections, improving the surface cleanliness and bonding performance of subsequent construction. The visual inspection system preliminarily screens out individual products with surface scratches, uneven lamination or dimensional errors, ensuring that only qualified products enter the final packaging process. For products requiring surface protection, the automatic film laminating device can attach protective films on the panel surface to prevent scratch and pollution during transportation and storage. Finally, the intelligent stacking robot automatically sorts and stacks qualified panels according to fixed specifications, with neat stacking and stable placement, which saves manual stacking labor costs and avoids panel damage caused by manual operation errors. This complete post-processing workflow ensures the consistency and integrity of finished products.

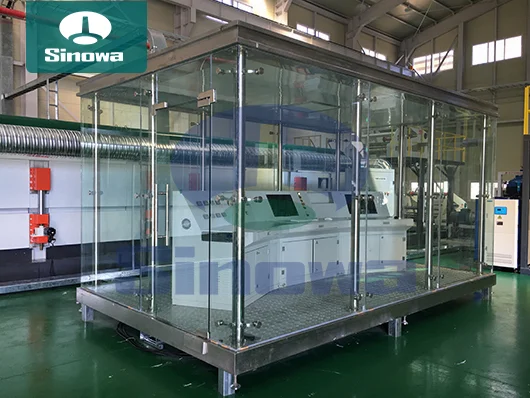

The integrated control and adaptive adjustment system of the modern phenolic insulation panel production line ensures long-term stable operation and flexible production adaptability. The whole production process is centrally controlled by an intelligent PLC system, which integrates parameter setting, process monitoring, fault alarm and data statistics functions. Operators can adjust core parameters such as raw material proportioning, foaming temperature, pressing pressure, curing time and cutting size through the human-machine interface to adapt to different production requirements of panel thickness, density and composite forms. The real-time data monitoring system continuously tracks key production indicators, automatically corrects minor parameter deviations during operation, and triggers alarm prompts for abnormal conditions such as material blockage, temperature overload and equipment failure, effectively reducing equipment failure rate and production loss. In addition, the modular design of the production line facilitates daily maintenance and later function upgrading. Compared with traditional production equipment, it features lower energy consumption, higher automation level and better product stability, meeting the growing market demand for high-quality, energy-saving and fireproof phenolic insulation materials in the construction and industrial fields.
